2024 RMK Marine Expedition

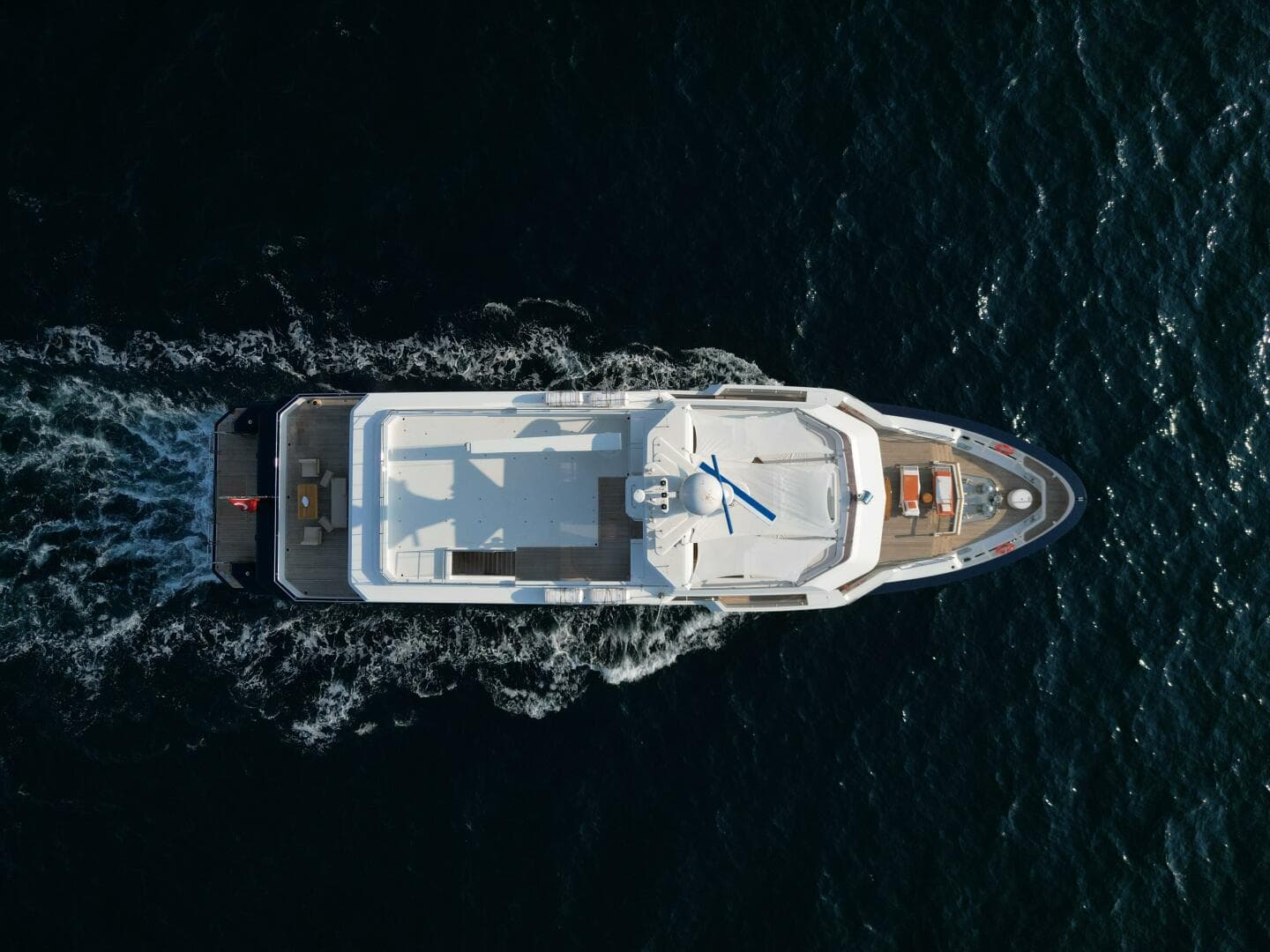

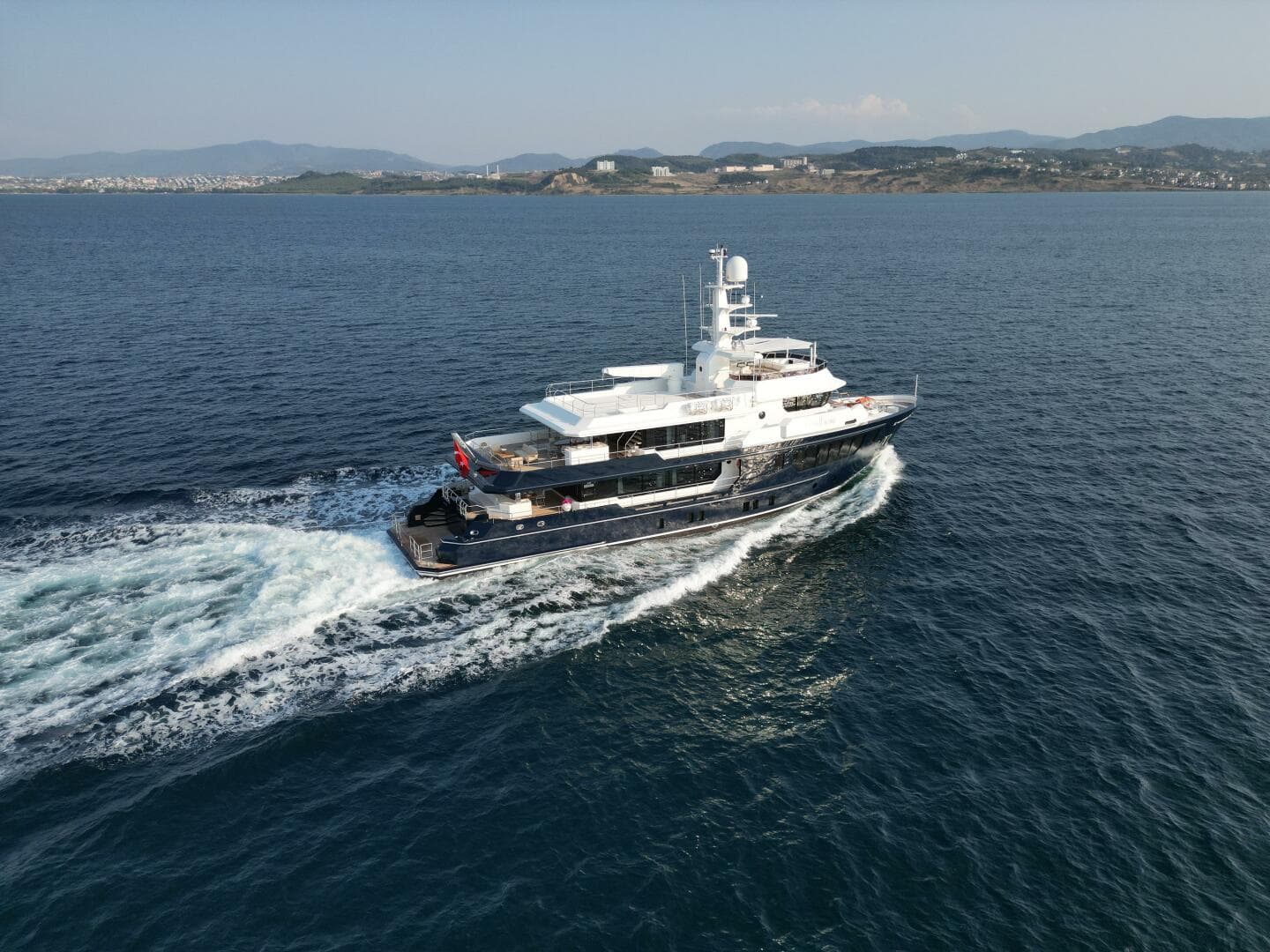

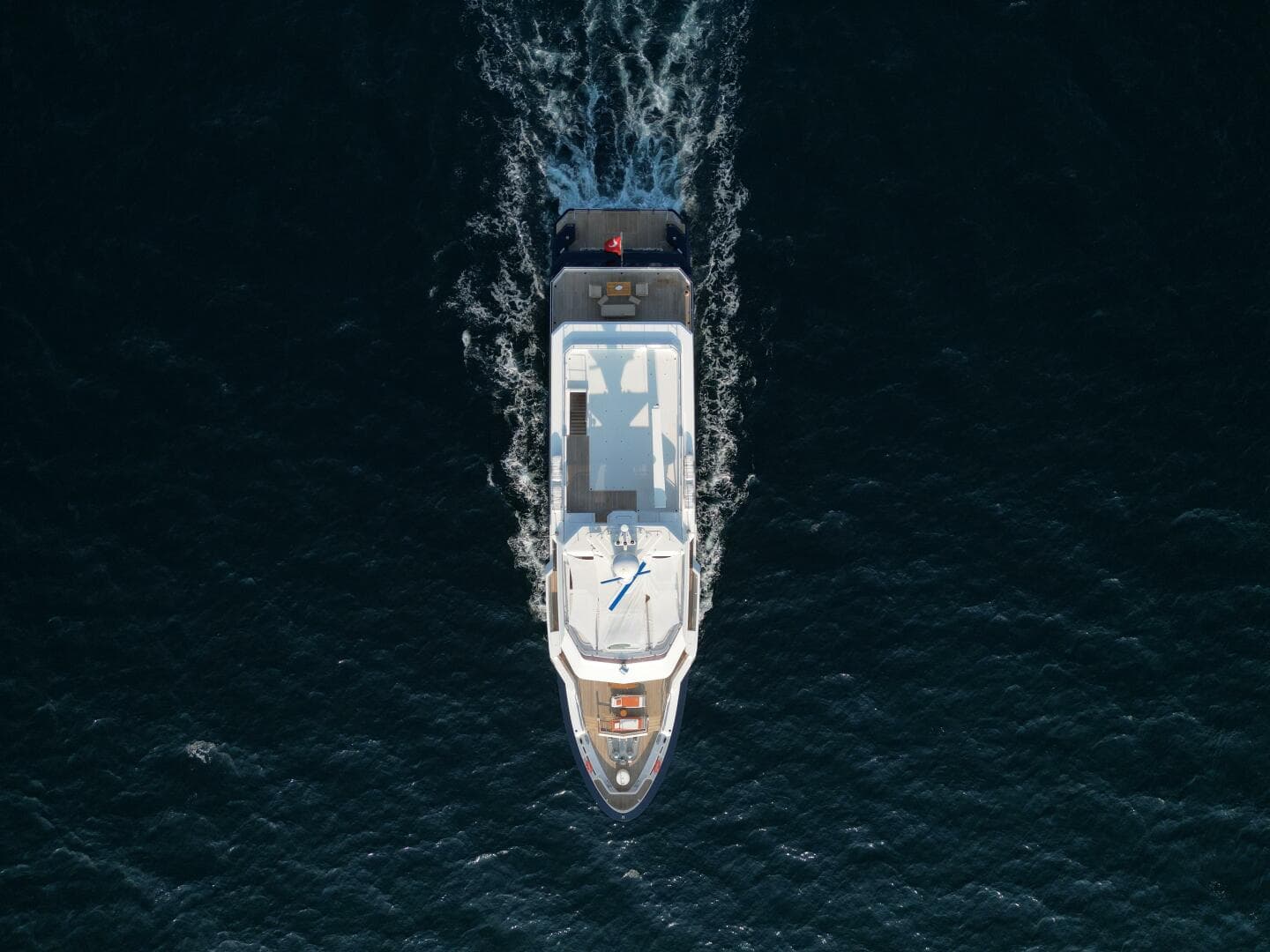

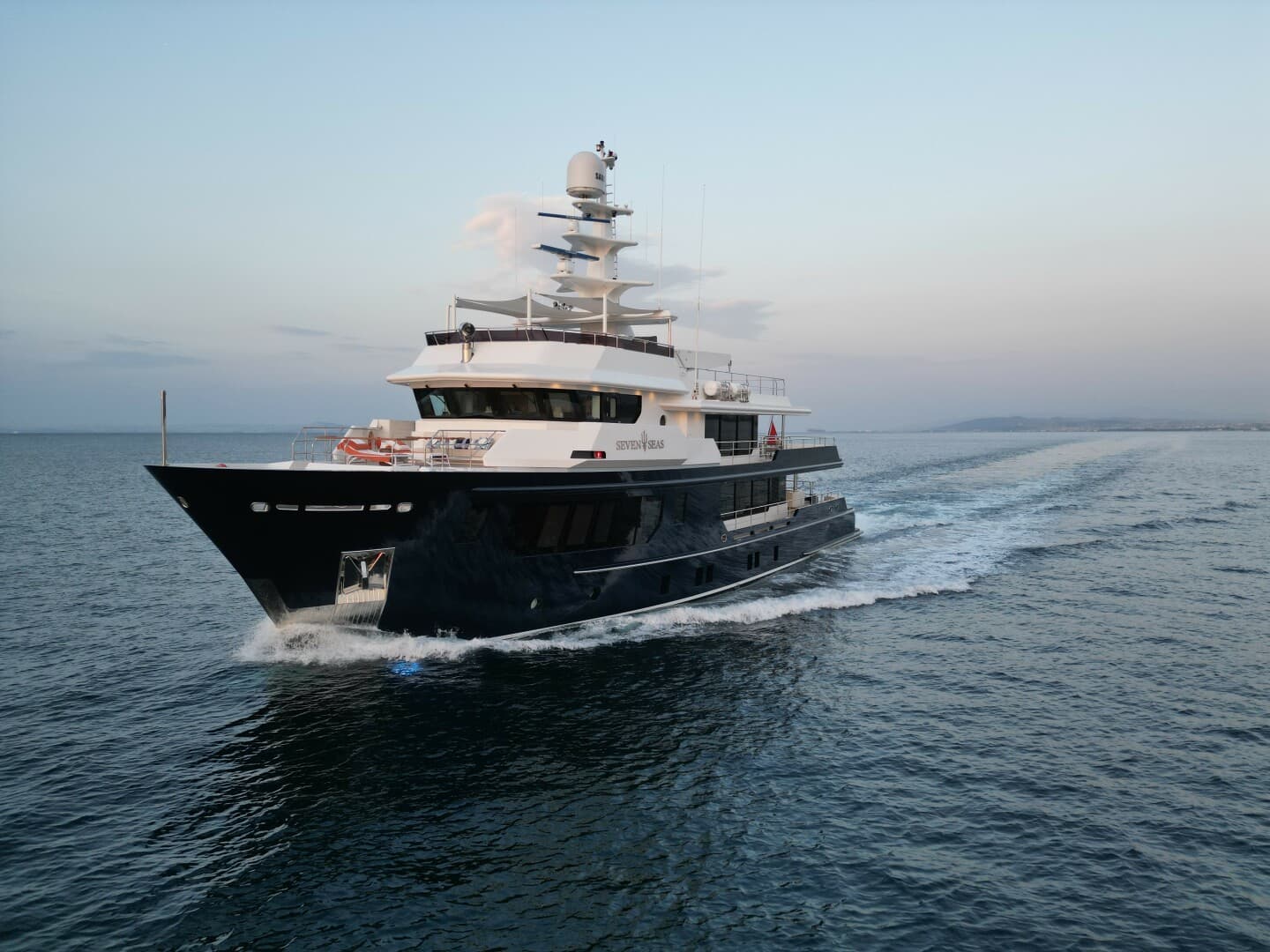

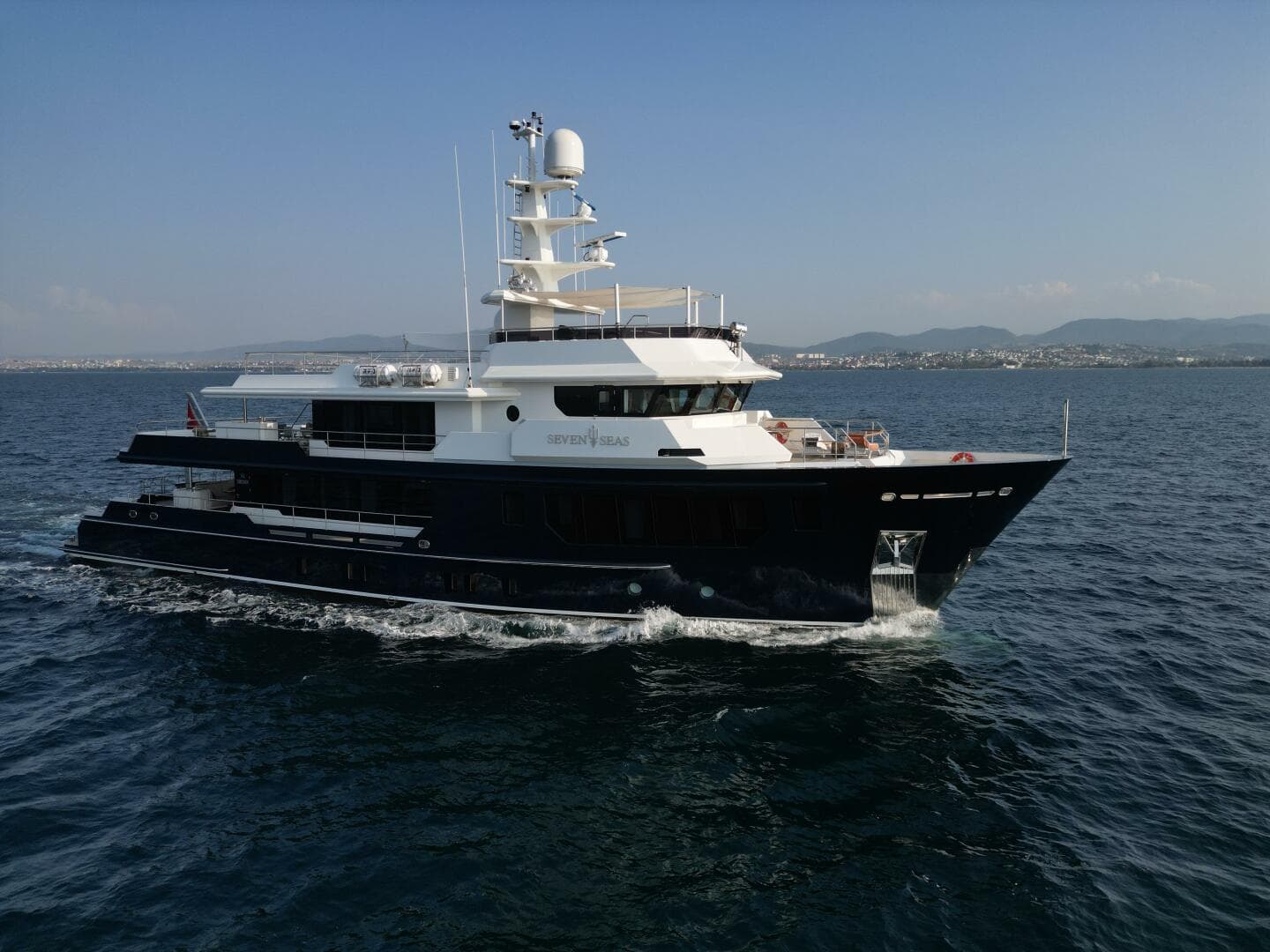

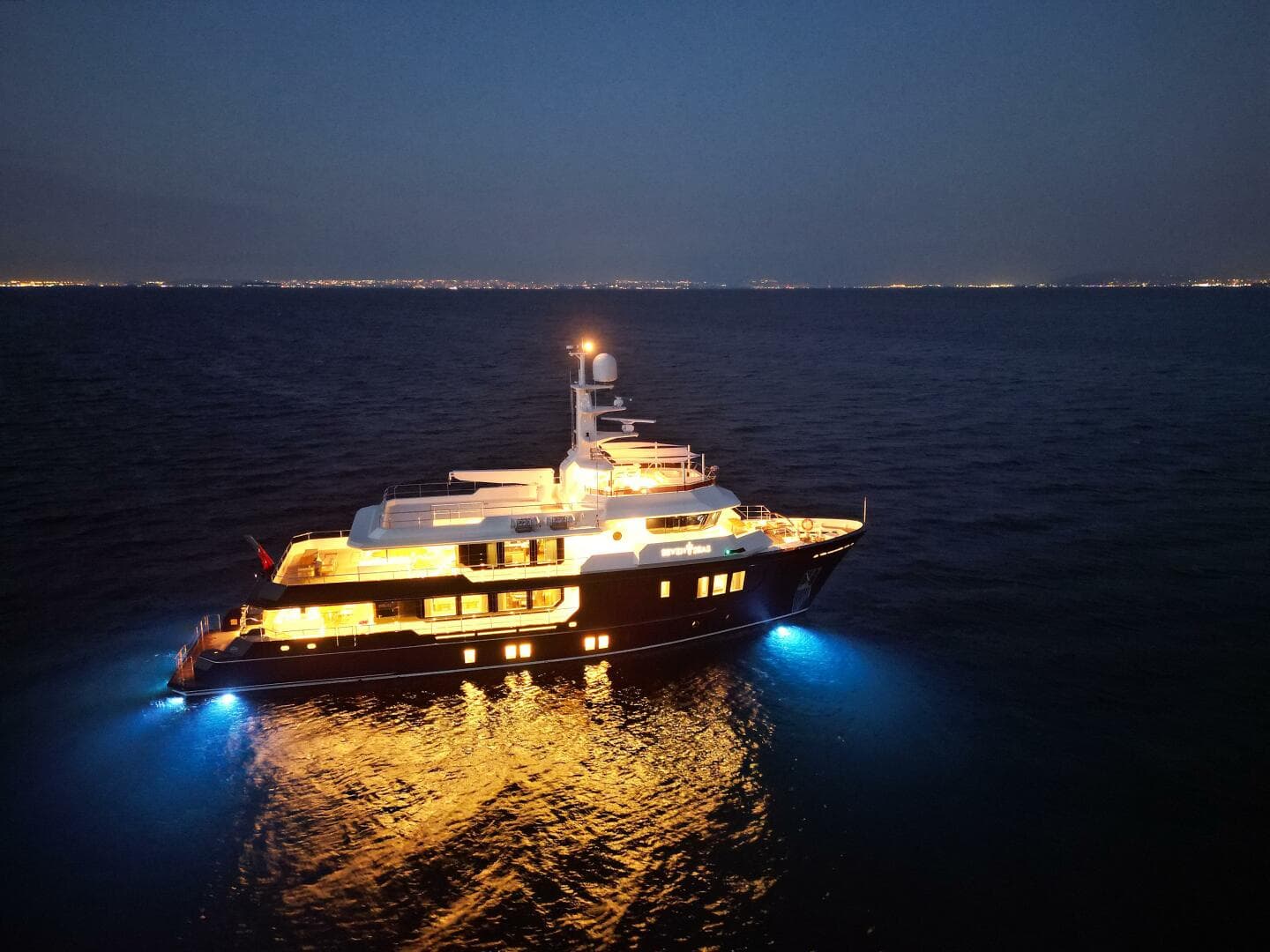

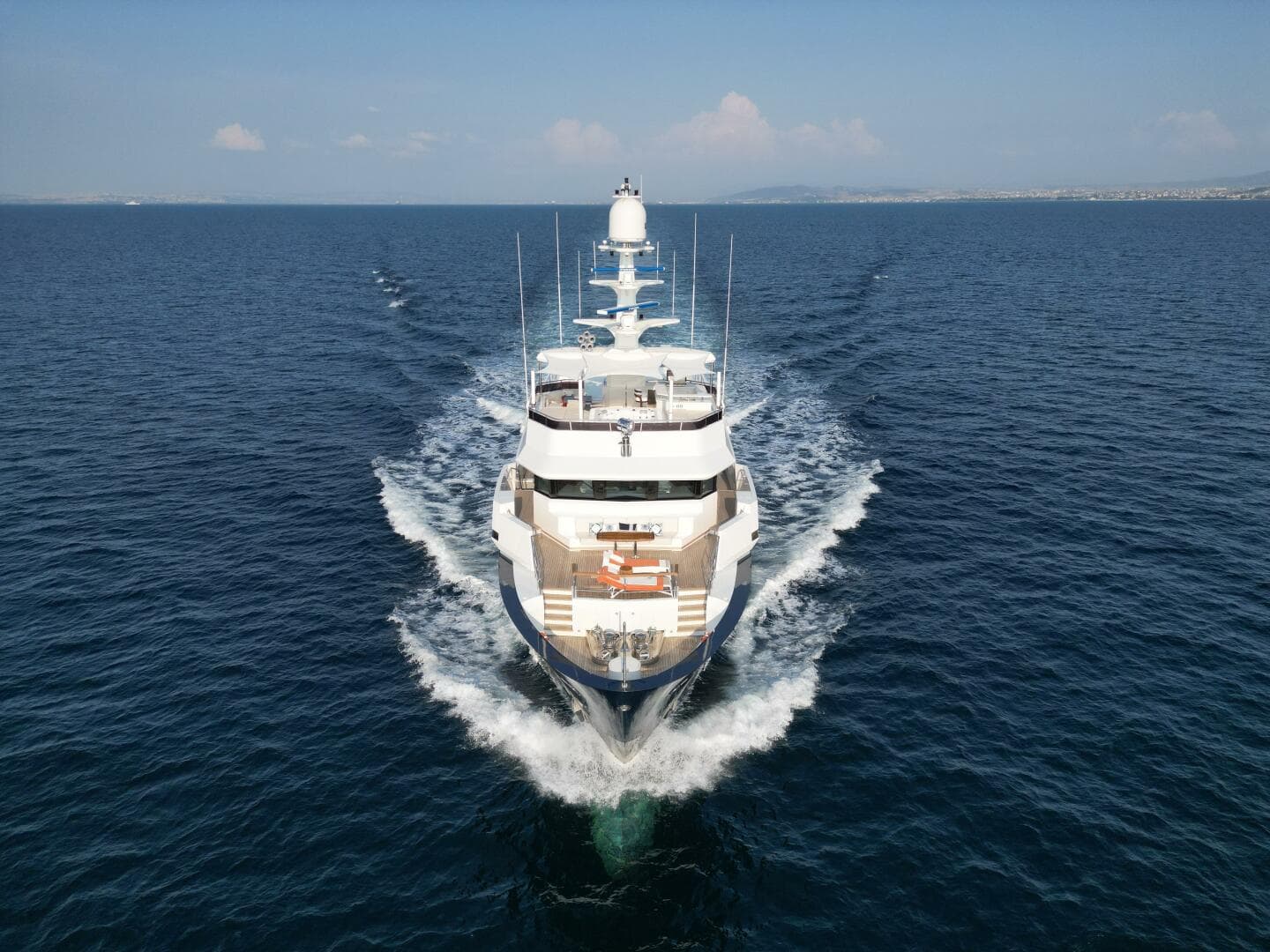

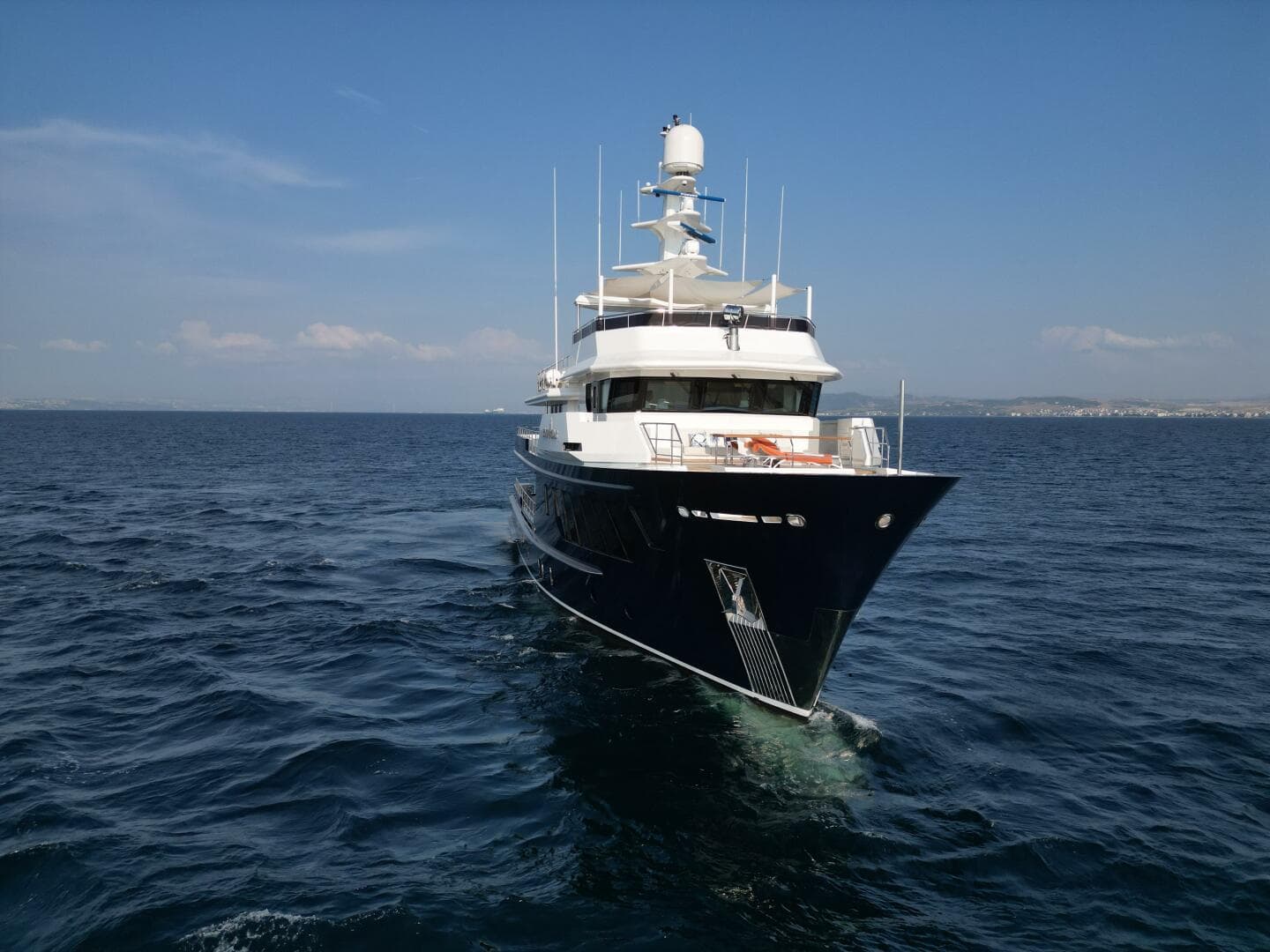

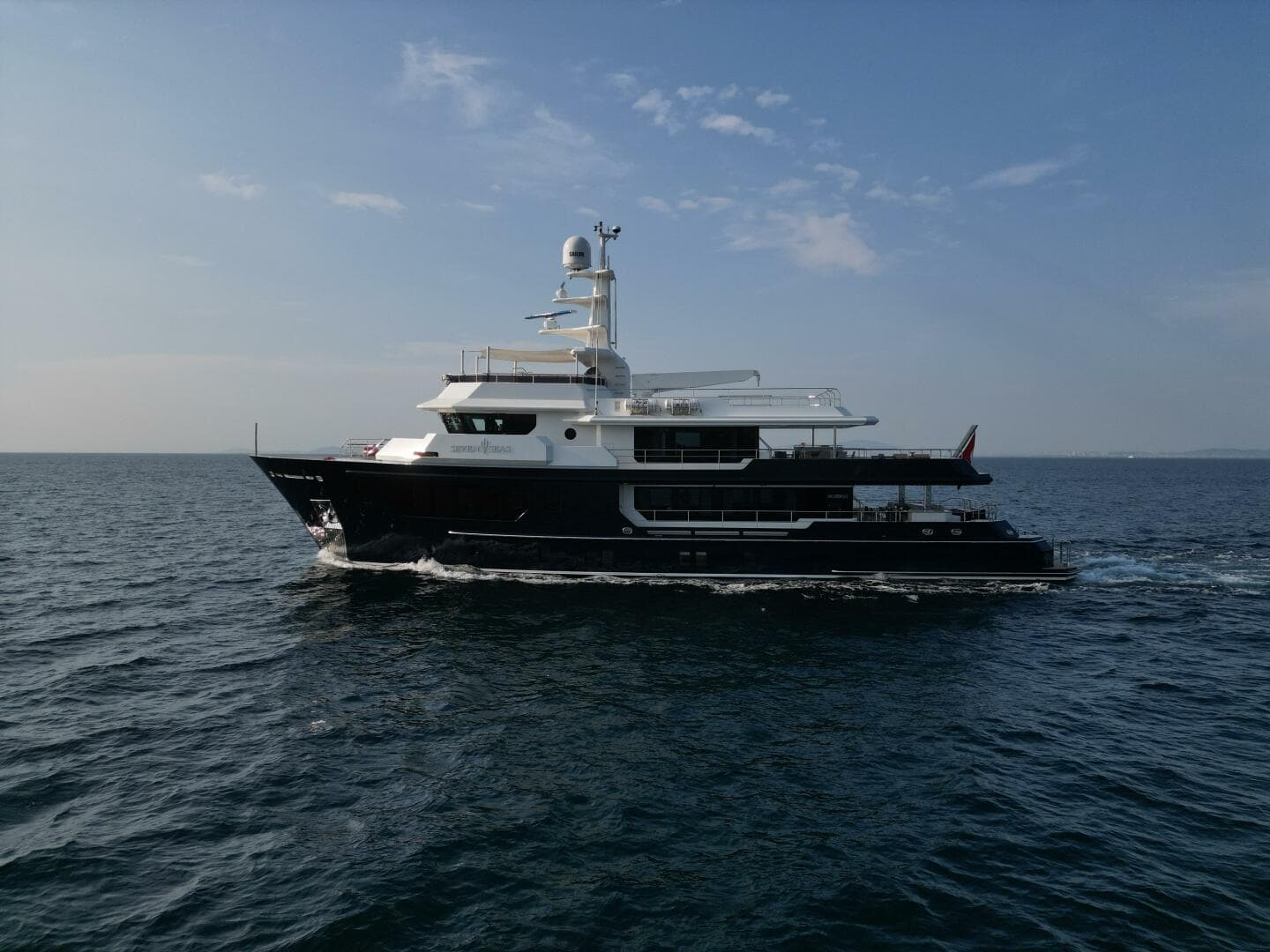

Introducing the stunning "Seven Seas," a remarkable new mega yacht by RMK Marine, set to make waves in 2024. Measuring 120.92 feet in overall length, this impressive vessel features a robust steel hull that combines durability with elegance. Powered by twin Caterpillar C32 inboard engines, each producing 950 horsepower, the yacht cruises comfortably at 10 knots and reaches a maximum hull speed of 13.5 knots, ensuring exhilarating journeys on the water. "Seven Seas" offers luxurious accommodations across nine well-appointed cabins and nine heads, providing ample space for relaxation and comfort. Equipped with a hydraulic windlass, this yacht blends functionality with sophistication, making it ideal for both leisurely cruising and adventurous exploration. With a remarkable range of 3,600 miles, "Seven Seas" is designed for those who seek adventure without compromise, promising unforgettable experiences at sea.

Detailed Description

Type: Explorer Motor Yacht

Designer: Vripack

Naval Architecture: RMK Marine

Interior Design: Epikworks

Builder: RMK Marine

Class: LR ✠ 100A1 SSC Yacht Mono G6A, (✠) LMC

Flag: Marshall Islands

Dimensions

Main Particulars

Length overall: 36, 86 m

Breadth (Moulded): 8, 6 m

Draught (Full Load): 2, 84 m

Gross Tonnage: 399 GT

Speed: 13.5 kts max, 10 kts cruise

Range @ 10kn: 3,600 nm

Propulsion & Steering System

Propulsion & Steering System

Propulsion & Steering System

Engines: CAT C32 2x709 kW each @ 1600 RPM

Gearbox: 2 x ZF W3350(4,0:1) with throlling valves

Propulsion System: MMP 5-Bladed FPP

Steering System: Data Hydraulic

Rudder Assembly: 2 x Steel rudders with SS Shafts

Exhaust System: Halyard

Electrical System & Lighting

Electricity Network: 24V DC, 230V/400V, 50Hz

Shore Power Converter: 1 x Atlas. 75kVA,

Service Generators: 2 x CAT C4.4 69 ekW,

Night Generator: 1 x Northern Lights 32 ekW,

Battery Charger: Victron

Batteries: Sonnenchein OPzV & Exide AGM - Gel type

Cables: XLPE based LR Certified

ICAF: Cathelco

Navigation Light: Aquasignal 55 Serie Incandesant

Flood Light: Hella Marine Sea Hawk

Technical Area Light: E-LED Oceanus

Interior Lighting: BCM Lite & Bright Serie Down

Underwater Lights: 8 x Underwater Light Ltd. QTS75 RGBW

Navigation and Communication

External Communication : GMDSS A3

Radar 1 : Furuno 25kW X-Band 8ft Array

Radar 2 : Furuno 30kW S-Band 10ft Array

GPS : SAAB R5 Supreme DGPS

AIS : SAAB R5 Supreme DGPS-AIS

EPIRB&SART : SAILOR 4065 EPIRB - TRON 20 AIS-SART

Searchlight : Carlisle & Finch 500 Watt Xenon

Magnetic Compass : Sperry Marine Jupiter 180mm Overhead

Chart plotter : TRANSAS NS4000 ECDIS & TIME ZERO PRO

Weather Station : Airmar WX220

Echosounder : Furuno FE-800 50kHz & 200kHz Transducers

Speed Log : Sperry Marine NAVIKNOT 350 Electromagnetic

Fish Finder : Furuno CH600 Searchlight Sonar

Data Repeaters : B&G H5000 Hydra & 6 x Graphical Display

Intercom : Phontech CIS 3100 5 Zones

VHF : 2 x SAILOR 7222 VHF DSC Class A

MF/HF : 1 x SAILOR 6310 150W DSC Class A

Navtex : Furuno NX700

Inmarsat : SAILOR 6110

SAT Phone : SAILOR 4300 Iridium L Band

BNWAS : Furuno BR500 with 3 Stations

Ship’s Horn : Kahlenberg F-3 5 Horns

Security/ Alarm Monitoring System

CCTV : Dahua HDCVI 8 x PTZ Dome Type AHD cameras with 15 Days recording capacity

Brand / Model : LYNGSO Automation

Display : 2 x 21” Panel PC, 3 x Digital Repeater

Input/Output : 350DI, 15DO, 108 AI, 400 Serial IO

Printer : 1x Epson

Deck Layout & Deck Machinery

Bulwarks & Guard Rails : GMDSS A3

Anchor & Mooring : Furuno 25kW X-Band 8ft Array

Anchors & Chain : Furuno 30kW S-Band 10ft Array

Teak Deck : SAAB R5 Supreme DGPS

Jacuzzi : SAAB R5 Supreme DGPS-AIS

Crane : SAILOR 4065 EPIRB - TRON 20 AIS-SART

Passarelle : Carlisle & Finch 500 Watt Xenon

Side Boarding Ladder : Sperry Marine Jupiter 180mm Overhead

Swim Platform : TRANSAS NS4000 ECDIS & TIME ZERO PRO

Weathertight Hinged Ladder : Airmar WX220

Watertight Sliding Doors : Furuno FE-800 50kHz & 200kHz Transducers

Weathertight Sliding Doors : Sperry Marine NAVIKNOT 350 Electromagnetic

Window Wipers : Furuno CH600 Searchlight Sonar

Accommodations

Owners Accommodation:

Number of cabins: 1

Number of berths: 1 double

Complement: 2

Guest Accommodation:

Number of cabins: 4

Number of berths: 3 double + 1 twin

Complement: 9 (with Pullman)

Crew Accommodation:

Number of cabins: 4

Number of berths: 1 double + 6 single

Complement: 7

Galley& Pantry Appliances: Miele

Laundry Appliances: Miele

Crockery, Cutlery, Glassware: Owner Supply

Loose Furniture: Owner Supply

Curtains & Soft Furnishing: Custom

Carpets : 20 mm wool-viscon & underlay, plain color

General Description of Interior

Quality and detailing of the interior is in accordance with the best yacht practice and high-quality material are used.

The material selection is carried out by the interior designer and RMK Marine.

Interior is of a contemporary styling with an overall use of standard veneers, semi-gloss finishes with accents in wall

panels, combined with natural and fresh colored fabrics. Tabletops are marquetry of standard veneers. Selection of

standard veneers and marble floors and countertops are implemented in bathrooms.

The minimum clear headroom above wooden construction floors to finished ceilings in principal areas is to be:

Lower Deck : 2.11 m

Main Deck : 2.11 m

Wheelhouse Deck : 2.10 m

Wheelhouse : 2.08 m

Crew : 2.11 m

Master Cabin : 2.18 m

Tankage

Fresh Water System

Piping : U-PVC and C-PVC Piping

Pumps : Headhunter AQX-230

Water Maker : 2 x FCI ATLAS 13.632 lt/day each

Boilers : Solareks 3 × 100 litres, Tanks 2x4,5kW Elements

Grey Water System

Piping : U-PVC Piping

Pumps : Desmi

Black Water System

Piping : U-PVC and C-PVC Piping

Pumps : Desmi

Toilets : 11 x Tecma Silence Plus

Sewage Treatment : Hamann HLCP025

Additional Information

Bilge & Fire System

Piping: CuNiFe Piping

Pumps: Desmi

Seawater System

Piping: CuNiFe

Deck Drain System

Piping : Steel Piping below Main Deck

Fuel System

Piping : Stainless Steel Piping

Pumps : Desmi

Diesel Oil Separator : 1 x Alfa Laval 503

Lube & Dirty Oil System

Piping : Stainless Steel

Pumps : Desmi

Tank Vent System

Piping : Steel

Compressed Air System

Piping : Stainless Steel

Service Air Compressor : Dalgakıran TIDY-4 7 bar 24,6m³/h

Hydraulic Systems

Piping : Steel

Power Packs: Main HPU and PTO’s. Swim platform & Pasarella with additional own

HPU’s.

Additional Information

10

HVAC

Chilled Water Piping : PVC

Fresh Air & Exhaust Ducting: Flexible Ducting

Chilled Water Plant :

1 x Flow Marine 43,9 kW Shell/Tube Titanium Condenser with VFD Controlled 3x15 kW Scrool Type

Compressor additional 20kW Heater Barrel for heating process

Supply & Exhaust Fans : 2 x ELTA 7,5kW

Air Supply Fans : 15 x Heinen Hoppman In-Line Fans

Fancoils :

2 x 10K BTU

3 x 12K BTU

4 x 16K BTU

6 x 18K BTU

5 x 24K BTU

4 x 400CFM FAMU

11 Fire Fighting Systems

Sprinkler : Survitech low pressure sprinkler system for accommodation,

CO2 system in engine room.

2 x Seawater firefighting pumps in engine room.

Portable fire extinguishers in each room.

LSA

Life Rafts : 4 x 12 person SURVITEC

Others : Viking

Glazing

Windows, port lights etc. : Heat tempered.

Insulation

Fire Insulation: Rockwool

Comfort Insulation: Rockwool

Paint

Antifouling : International AF system

Yacht Finish Paint : International AWL Grip HDT (Superyacht Finish)
